Our organization sticks to your principle of "Quality may be the life of your organization, and reputation will be the soul of it" for FC TO ST Simplex Connector,OM4 Optic Fiber Jumper Cable,ST TO FC OM4 Jumper. We are sincerely looking forward to creating superior cooperative relationships with clients from in the home and overseas for creating a vibrant foreseeable future together.

China for Fiber Optic Cord,Fiber Optic Jumper Cables,Fiber Optic Cable Patch Cord Manufacturers and Suppliers in China FC TO ST 2.0 simplex mm OM4 connector supply to Aruba Importers

     OM4 multimode patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.  Our OM4 jumper is yellow, 50/125 Fiber Core, Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. We can provide different color cable according to customer requirements.
Feature
Low Insertion loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness

ORDERING INFORMATION

EXAMPLE

PIGTAIL: SCU-A1S9L3 (SC/UPC-G.657A1-SIMPLEX-0.9MM-LSZH-3M)

PATCH CORD: SCU-SCU-A1S9L3 (SC/UPC-SC/UPC-G.657A1-SIMPLEX-0.9MM-LSZH-3M)

SCU SC/UPC

FIBER TYPE

CABLE

CABLE SIZE

JACKET

LENGTH

SCA SC/APC

D              G.652D

S    SIMPLEX

9   0.9MM

L  LSZH

1     1M



A1            G.657A1

D    DUPLEX

2    2.0MM

P    PVC

2     2M



A2           G.657A2



3    3.0MM



3     3M



M1     OM1(62.5/125)







X    XM



M2    OM2(50/125)











M3    OM3(50/125)











M4       OM4(50/125)









 1. Dada sheet



Testing Condition

(dB)

SM

MM

APC

UPC

PC

Optical Performance

IL(dB)

1310/1550nm LD Light

0.25

0.2

0.2

0.2

RL(dB)

1310/1550nm LD Light

60

50

50



Environment

Performance

High Temperature

+85℃,168H

0.2

Temperature cycle

-40~+75℃,21cycle,168H

0.2

Humidity thermal(Fixed)

5℃,95%R.H.,168H

0.2

Humidity thermal cycle

10~+65℃,95%R.H.,21 cycle,168H

0.2

Mechanical Performance

Vibration

10~55Hz,1.5mm(p-p)

0.1

Bending

0.9kgf,-90°~+90°,100cycle

0.1

Torsion

2.5kgf,10times/min,±180°,200times

0.1n

Anti-tension

90N,10min

0.1



Dropping

1.5 height, 8 times

0.2

Repeat

10 Times inserts

0.1

Durability

>1000times

0.2

2. Mechanical Performance and Working temperature

Working temperature

-40 to 80

Storage Temperature

-5 to 50

φ3.0 Fiber Curl Radius

30

Mm

φ3.0 Anti-tensile strength

9.0

Kgf

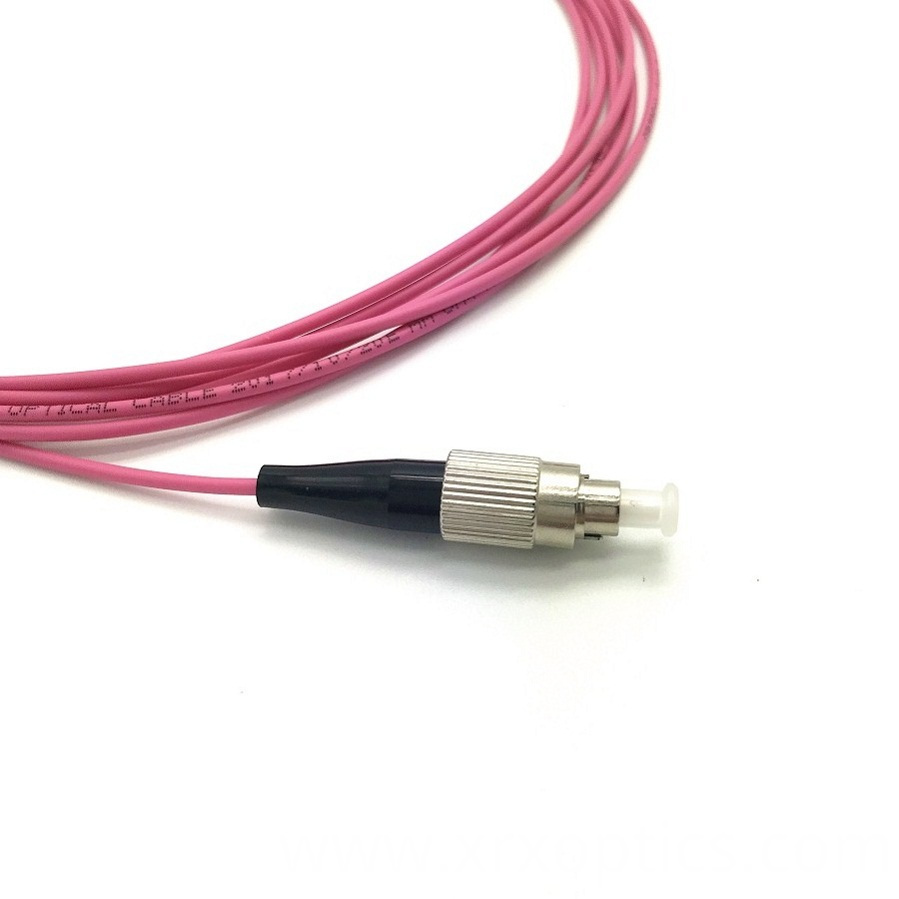

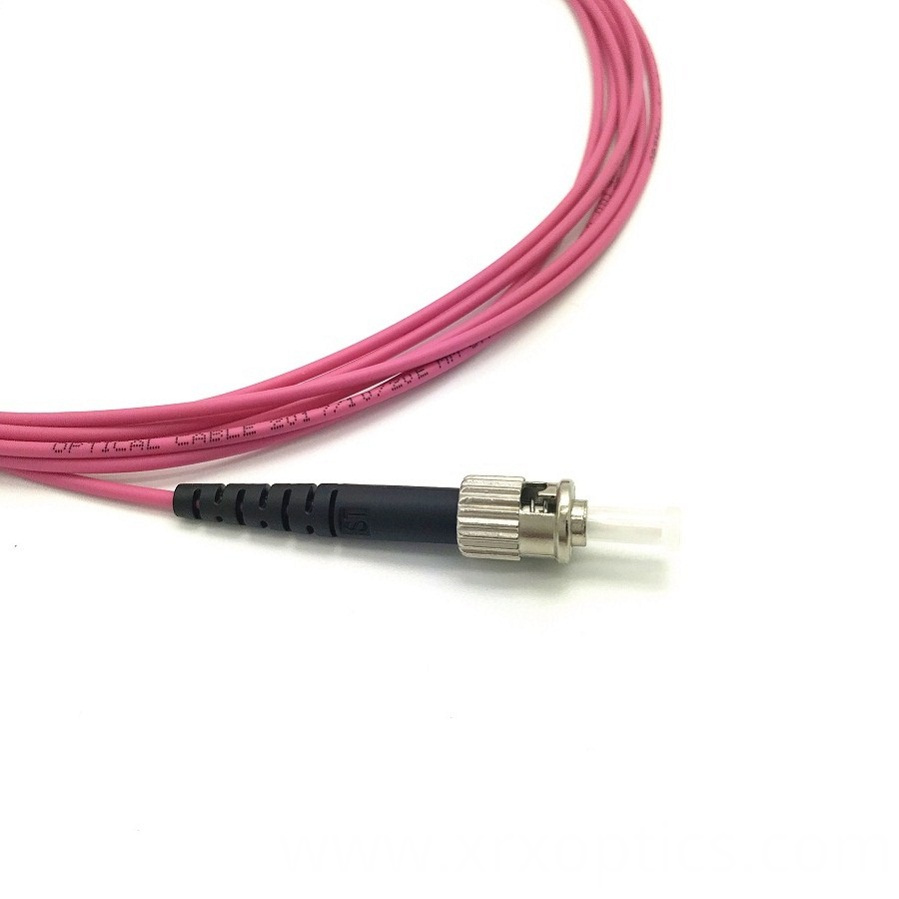

fc upc 2.0mm simplex mm OM4 connectorst upc 2.0mm simplex mm OM4 connector
